Keyless Entry Upgrade for 01/02 MK2.5 01/02/03

WARNING, due to the unatural angles you will require to distort yourself into to complete this job, you may need to seek the services of a Chiropractor afterwards. !

Keyless entry on the MX5 MK2.5 is standard on the sport and some special edition models, the practicalities are obvious for this facility but I also wanted to stop the door getting scratched by the bunch of keys. Having decided a mod was in order I set about the task of finding a suitable kit at a reasonable price, little did I know how hard this would be.

My first port of call was the main dealer, after talking to several I came to the conclusion that the OEM parts (about £200) were not suitable for retro fitting. In fact if you have this mod done at the dealer then it's quite likely they will sub the work out to an Auto Electrician to fit an aftermarket unit anyway. One dealer quoted me £310 !

Installation is made a little easier as all post 01 MX5's have actuator motors in both doors. You will need to check this before purchasing your keyless entry unit. You can verify this easily, unlock the doors and then lock them via the passenger side, if the drivers door locks then you have actuators in both doors and you only need the Keyless Entry Module to make this work.

So, having decided a dealer fit kit was a little pricey, I chose a kit being sold by "MX5 parts" for a very reasonable £62 which included two remotes. This kit however is not supplied with bespoke connection info for the MX5 let alone a MK2.5 with a somewhat more complex central locking system, it's down to you to find that out.

After several weeks of scanning the internet for info, I found that there is loads of information and systems out there for the MK1 but very little for the MK2.5. I have also been unable to locate a set of wiring diagrams or workshop manual for this model, this would have helped enormously. I was hopeful that our friends at Miata Net in the USA would be able to help, but it became quickly apparent that the USA spec car is wired differently, I put this down to amongst other things the UK Cat 2 immobiliser and alarm system. There is a good article in the Miata garage for a 99 model, however the connection information is not the same for either later UK or USA cars.

The solution was finally worked out by Max from Maximum Impact a professional Alarm and Audio installation company in Leeds, after sending him the pin out drawing below of the DLM (door lock module). He suggested that a 1K resistor was needed in the lock circuit, he also suggested that the lock signal be via a relay. Apparently the UK MX5 uses a similar system to the Ford Probe. A massive thanks goes to Max for his help and I can definitely recommend him as somebody who knows his stuff, so if you need the services of an alarm installer in the Leeds area give him a call on 0113 244 1448.
Another good reference site for 12V and relay info is Here.



Kit Details

The  MX5 Parts kit is a 3 channel system, the second and third channels can be used to operate other facilities e.g. remote boot release.
Note, the picture on the MX5 Parts web site is of the single channel system not the 3 channel. I was a little disappointed with this as the single channel fobs look much slimmer.
A different unit could be used, the wiring diagram would be the same if it has -ve outputs. A single channel system would suffice if only door locking/unlocking was needed.

The KEU (keyless entry unit) also has several other outputs including interior light activation and horn beep, these may added in the future. Lock and Unlock output triggers are  -ve 300ma. The quality of the key fobs is not great but the unit seems to be robust enough.

Other facilities available are Autolock which is selected via the dipswitch on the KEU, starter interrupt and L.E.D activation warning. The starter interrupt is not required on the 02 as it already has an immobiliser, I also didn't bother with the L.E.D as I prefer to keep the installation as invisible as possible, besides which there is already a dashboard warning light. The KEU also has supplementary 12V and ground outputs which could be used for window closure e.t.c. The unit has an option for an extended pulse trigger, this is not required for the MX5.
The standard alarm system will continue to operate in the normal way, it will be activated when you lock the doors.



Before You Start

Access to the foot well area is very tight, the use of a warm dry garage will make the job much easier. I found that lowering the roof gave a more light in the car, and a mains lead light will also be useful. You may also find it useful to remove the fuse box cover, pull it out and up.
Things you will need:
A selection of Mail and Female crimp terminals and crimp tool.
Soldering iron.
Metal Strapping with two off captive nuts or similar. Hacksaw for cutting the strapping to length. Selection of small self tapping screws.
30A Relay part # RLFK 1220 CHG by Ring or similar, must have a set of normally open contacts. 1K resistor and small length of heat shrink or similar. Total cost of these parts should be about £8.





Installing The KEU

I chose to attach the KEU to the panel below the steering column, although it could be mounted anywhere behind the dashboard. The panel is removed by undoing the two screws on the lower edge, you will then be able to slide the panel downwards.
There is enough room behind this panel to mount the KEU directly to it, you need to site it as close to the bottom edge as possible to clear the large connector going to the steering wheel.
Mazda have kindly supplied a couple of standoffs that can be used to mount the unit, this saves any unsightly screw heads being visible on the outside. Cut two short lengths of strapping and mount the unit as shown, use the captive nuts to secure to the lugs on the KEU. Use care when screwing the straps to the standoffs as screws that are too long will  breakthrough the cover. The relay was attached to another of the standoffs on the cover.

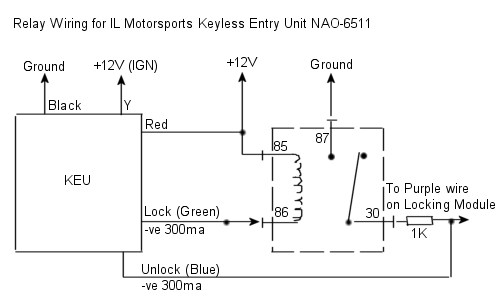

Once you have securely mounted the unit and the relay, continue to wire them up using the diagram below. You should be left with 4 wires leading away from the panel.
Also seen in this picture is the aerial, I simply attached this to the back of the cover with a piece of tape. For the sake of neatness I chose to remove the unused wires from the large connector on the KEU, this is easily done by using a sharp tool to push down the sprung part of each socket seen here on the right, the wires can then be pulled from the connector.

The resistor was attached to a Spade connector as shown here on the left, I used a short length of heat shrink to cover the exposed wire.









Connecting Up The KLM

The first job is to locate the DLM situated behind the dashboard. The DLM and the Multipin connector can be seen here in the centre of the picture on the left, do not get confused with the Immobiliser Module which is in the top left hand corner.  A 12V test light will be useful here for checking the outputs. The unused connector for the heated seats will be ideal for the +12V and +12V IGN supplies seen here on the right. +12V is the Grey wire and +12V IGN is the Pink wire. The Earth connection can be made to any suitable point, I used the lower dashboard mounting screw as this was convenient. The last connection is to the Purple wire on the DLM. The diagram below shows all the connections required, you will need to remove some of the Black tape around the wires going to the DLM to gain access to the Pink wire.
That's it, tidy the wires, replace the cover and stand back and try it out. You can be smug in the knowledge that not many other people have succeeded in doing this mod yet.





Wiring Diagrams

























DLM Pin Out

Note
It has not been possible at this stage to determine how to use the KEU to operate the deadlocking, it's probable that another relay will be required to send a -ve pulse to a different connection on the DLM. However after discussing this with Max I decided not to bother, as theft from a vehicle with deadlocks will probably result in more damage to the lock and door as they try to pull the lock out.

Disclaimer
All information and diagrams supplied on this page are used at your own risk, this site is not liable for any problems arising from this modification. If you are in anyway unsure about undertaking basic vehicle electrics then you should consult an Auto Electrician. Modifying your vehicle may also invalidate your warranty. These installation instructions are not to be reproduced either in whole or part without the prior consent of the Webmaster, thank you.

Credits
These instructions have been graciously supplied by Allan Pickles. For more information about him and his cars, please visit his Website
